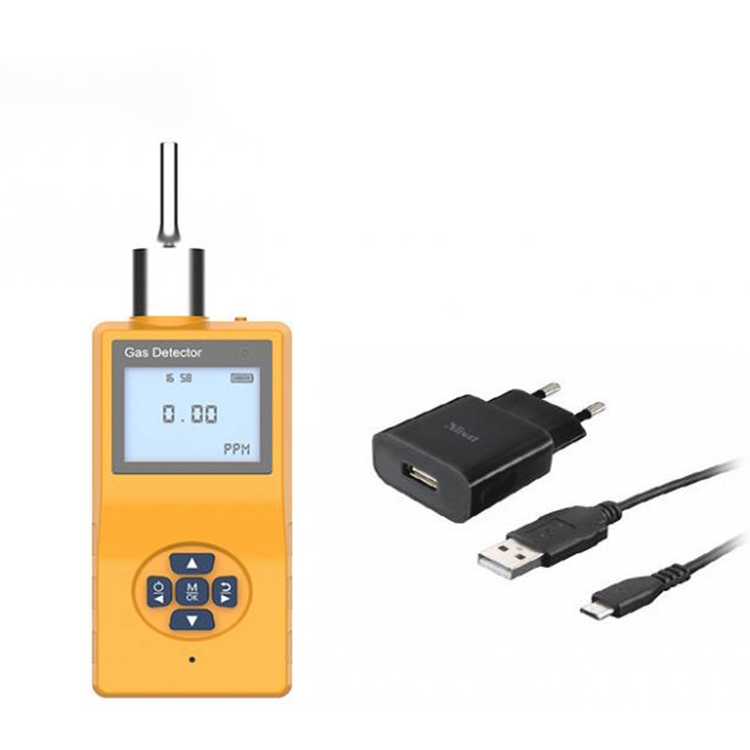

Plastic Material Pump Suction Portable
Single Gas Detector
OVERVIEW
MS100-P portable high precision H2S detector, is a method of continuous detection of H2S gas concentration in the nature of safety equipment, the use of imported non dispersive infrared technology sensor, can accurately and quickly detect the concentration of H2S, effectively guarantee the life safety of the staff, intelligent level two alarm function greatly meet the requirements of industrial field safety monitoring equipment. Beautiful and professional portable design for mobile use, the product is widely used in the fields of petroleum, chemical, metallurgy, petrochemical, bio pharmaceutical, environmental protection at home and school laboratory.
FEATURES & BENEFITS
- Imported high performance sensor, long service life;
- Built - in high performance air pump, flow rate is stable, can switch control;
- 5.is Navigation button, user-friendly and easy to operate;
- Support switching between Chinese and English;
- Can store 100,000 sets of data;
- Intelligent algorithm, more accurate measurement results;
- 2600mA large capacity lithium battery, continuous working time of more than 20 hours (electrochemical principle);
- USB mobile phone charger;
- %VOL, %LEL, mg/m3, PPM, PPH, PPB units can be selected;
- Acousto-optic alarm, timely alarm when the concentration exceeds the standard, to protect personal safety;
| Number | Type of gas | Range | Respond timeT90 (秒) |
| 1 | ASH3 | 0-5ppm | <90 |
| 2 | Br2 | 0-20/200ppm | <60 |
| 3 | C2H2 | 0-10/100ppm | <90 |
| 4 | C2H4 | 0-10/100ppm | <80 |
| 5 | CH2O | 0-10/50ppm | <80 |
| 6 | CH3SH | 0-10ppm | <90 |
| 7 | CH4 | 0-100%LEL | <30 |
| 8 | CL2 | 0-10/50/200ppm | <90 |
| 9 | CLO2 | 0-1/50ppm | <90 |
| 10 | CO | 0-100/500/1000ppm | <30 |
| 11 | ETO | 0-10/100/500ppm | <120 |
| 12 | H2 | 0-1000/40000ppm | <60 |
| 13 | H2O2 | 0-100/500ppm | <60 |
| 14 | H2S | 0-100/1000ppm | <60 |
| 15 | HCL | 0-50/200ppm | <80 |
| 16 | HCN | 0-50ppm | <30 |
| 17 | HF | 0-10/100ppm | <90 |
| 18 | NH3 | 0-20/100/1000ppm | <90 |
| 19 | NO | 0-250/2000ppm | <60 |
| 20 | NO2 | 0-20/2000ppm | <60 |
| 21 | O2 | 0-30%VOL | <25 |
| 22 | O3 | 0-1/10/100ppm | <90 |
| 23 | PH3 | 0-20/1000ppm | <30 |
| 24 | SIH4 | 0-50/200ppm | <60 |
| 25 | SO2 | 0-20/2000ppm | <40 |
| 26 | THT | 0-50mg/m3 | <60 |
PARAMETER
| Working principle: | Catalytic combustion, electrochemistry, infrared absorption spectrum principle |
| Sampling method: | Pump suction/dispersive |
| Measure range: | 0-100%VOL(Optional, other range can be customized) |
| Resolution: | 0.1%VOL,0.01%VOL |
| Accuracy: | ±3%FS |
| Repeatability: | <3% |
| Respond time: | T90 ≤30 sec |
| Alarm method: | Sound and light alarm, double color LED lamp, sound or 75 db @ 25 cm |
| Operation method: | Key operation(Life time of keys:2000000 times) |
| Material of host: | Full metal jacket, strong wear resistant corrosion, feel is good |
| Working temperature: | -30℃~+70℃(Conventional gas),-20℃~+50℃(poisonous gas) |
| Working humidity: | 10%RH ~95%RH,No condensation |
| Working pressure: | 86kPa~106kPa |
| Battery: | Built-in high-performance lithium-ion batteries, import core: nominal voltage 3.7 VDC, 2500 mah |
| Charger: | Travel charger with USB interface, USB power supply DC5V, charging temperature range: 0 ℃ to 40 ℃ |
| Charging time: | ≤6 hours, total charged time 12 hours |
| Continuous working time: | ≥12 hours |
| Dimension: | 135x65x35mm(LxWxH) |
| Weight | About 0.46Kg |
| Protection grade: | IP66 |
| Execution standard: | GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010 |
| Quality assurance: | One year warranty, the warranty period free maintenance, sensitive components such as sensors, according to the standard of sensor manufacturers.
|
APPLICATION
The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology and other industries and places that need safety detection of toxic and harmful, explosion prevention.
The detector can effectively predict the concentration of dangerous gas alarm, to ensure that the safety of staff life is not threatened, production equipment is not lost.
