H2S Portable Single Detecto
OVERVIEW
MS104K-S Protection level P65, up to IP68 needs special treatment, waterproof splash, dustproof, explosion-proof, shockproof, intrinsically safe circuit design, anti-static, anti-electromagnetic interference.
MS104K-S portable gas detector adopts a high-counting array display to display the concentration in real-time and record storage.
The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, explosion prevention.
The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.
FEATURES
- 2.31-inch high-definition color screen displays real-time concentration, alarm, time, temperature, humidity, storage, communication, power,
- Charge status and other information, the menu interface uses high-definition simulation icons to display the function names of each menu
- The alarm value can be set, and the alarm mode can be selected as low alarm, high alarm, and interval alarm
- Large-capacity data storage function, supporting 100,000 data storage capacity. Support real-time
- Storage, timing storage, or only alarm concentration data and time, support local viewing and deleting data,
- The data can also be uploaded to the computer through the USB interface, and the data can be analyzed, stored, and printed with the host computer software.
- USB charging port, overcharge, over-discharge, overvoltage, short circuit, overheat protection, 5-level accurate power display
- Three display modes can be switched: display the concentration of four gases at the same time, the concentration of the single-channel gas and the real-time curve are displayed in large fonts, each channel
-
Sound and light alarm, vibration alarm, visual alarm, under-voltage alarm, fault alarm, shutdown alarm
PARAMETER
| Detection gas | Complex gas (carbon monoxide CO, hydrogen sulfide H2S, oxygen O2, flammable gas EX) or any other single gas, except individual
sensors with high power consumption |
| Detection range | CO (0 ~ 1000ppm), H2S (0 ~ 100ppm), O2 (0 ~ 30%VOL), Ex (0 ~ 100%LEL),Other range can be customized |

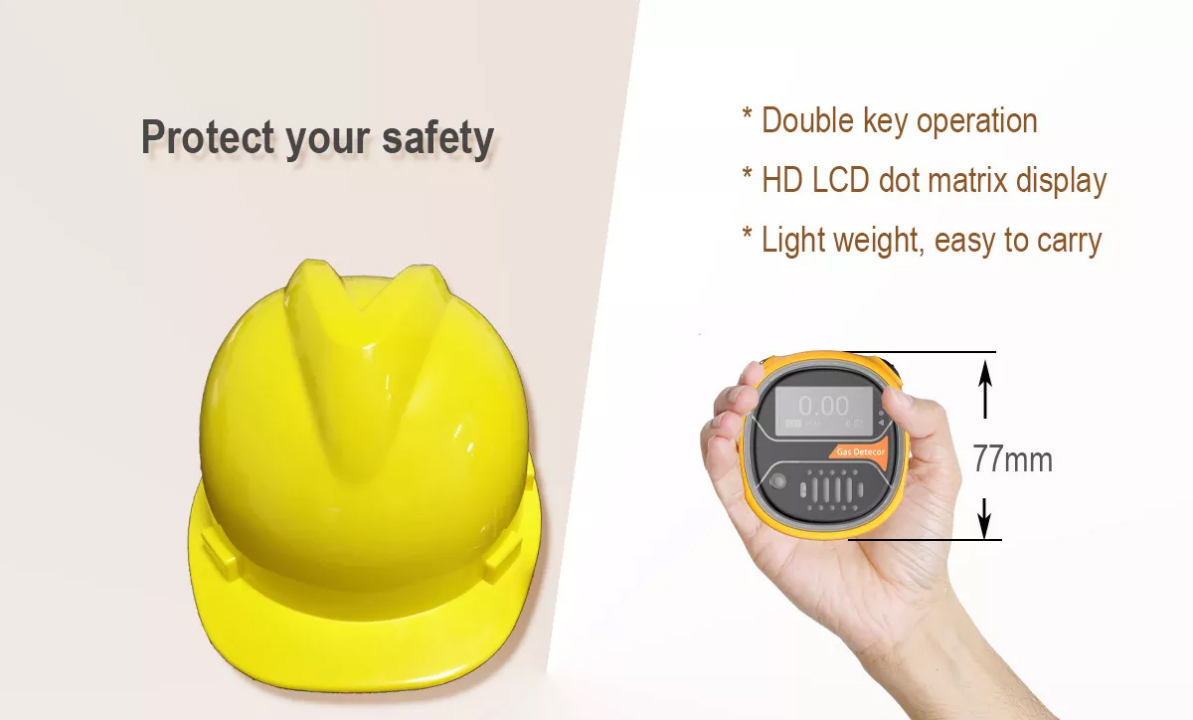

| Display mode | HD LCD dot matrix display, double button operation |
| Detection accuracy | ≤±3% (F.S) |
| Response time | T90≤30s |
| Data storage | Standard 20,000 pieces of data capacity, Support the local view, delete or data export, storage time interval arbitrary Settings |

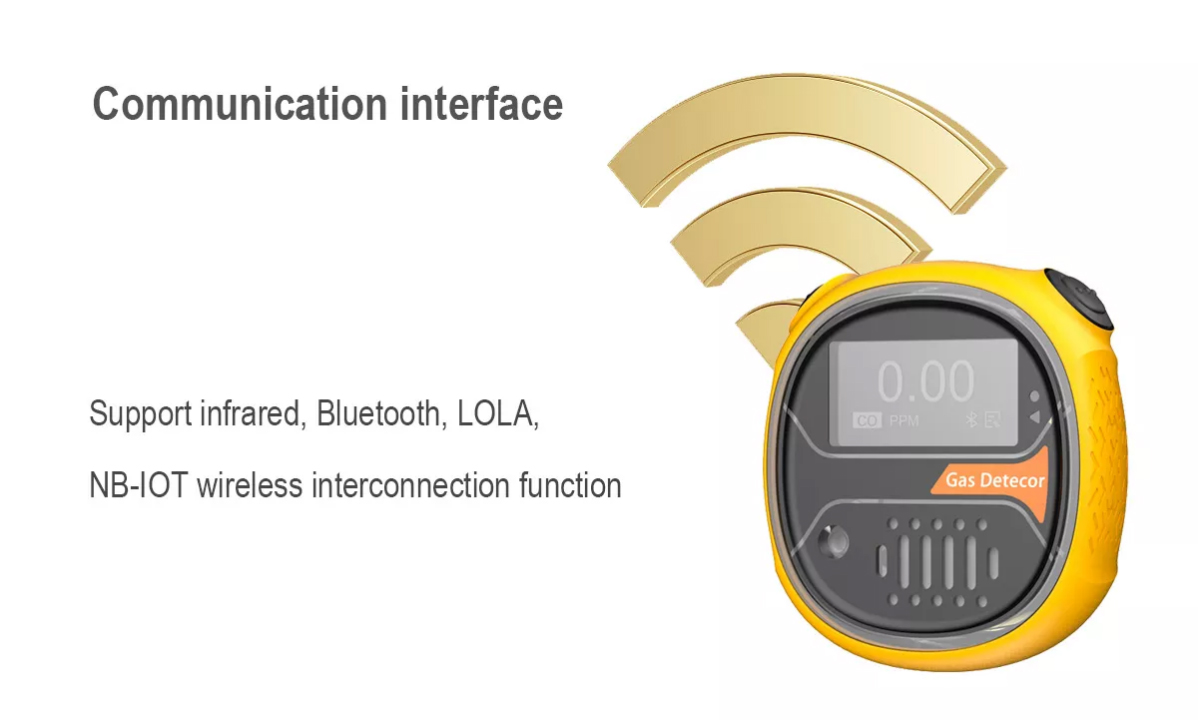

| Communication interface | Infrared communication, Optional Bluetooth, LORA communication, etc |
| Explosion-proof mark | Exia II CT4 Ga |
| Protection grade | IP65, Dustproof, Waterproof splash |
| Dimensions | 77×68×35mm(L×W×H) |
| Weight | Less than 150g |
